Description

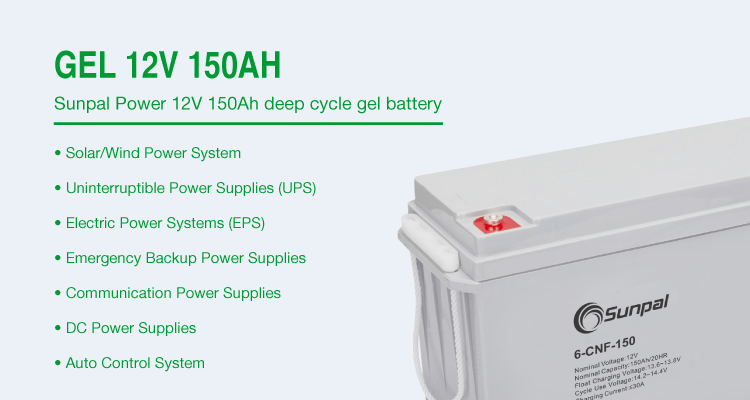

GEL 12V 150AH Specification
|
Model
|
6-CNF-150
|
|
Cells Per Unit
|
6
|
|
Voltage Per Unit
|
12
|
|
Capacity
|
150Ah@20hr-rate to 1.75V per cell @25℃
|
|
Weight
|
Approx. 44.5Kg (Tolerance±1.5%)
|
|
Internal Resistance
|
Approx. 6 mΩ
|
|
Terminal
|
F5(M8)/F12(M8)
|
|
Max. Discharge Current
|
1500A (5 sec)
|
|
Design Life
|
15 years (floating charge)
|
|
Maximum Charging Current
|
30.0A
|
|
Reference Capacity
|
C3 102.3AH C5 113.5AH C10 130.0AH C20 150.0AH
|
|
Float Charging Voltage
|
13.6 V~13.8 V @ 25℃ Temperature Compensation: -3mV/℃/Cell
|
|
Cycle Use Voltage
|
14.2 V~14.4 V @ 25℃ Temperature Compensation: -4mV/℃/Cell
|
|
Operating Temperature Range
|
Discharge: -40℃~60℃ Charge: -20℃~50℃ Storage: -40℃~60℃
|
|
Normal Operating Temperature Range
|
25℃±5℃
|
|
Self Discharge
|
SUNPAL Valve Regulated Lead Acid (VRLA) batteries can
be stored for up to 6 months at 25℃ and then recharging is recommended. Monthly Self-discharge ratio is less than 3% at 25℃.Please charged batteries before using. |
|
Container Material
|
A.B.S. UL94-HB, UL94-V0 Optional.
|
Constant Current Discharge Characteristics : A(25℃)
|
F.V/Time
|
15MIN
|
30MIN
|
1HR
|
2HR
|
4HR
|
8HR
|
10HR
|
20HR
|
|
1.60V
|
205.2
|
137.5
|
83.8
|
50.2
|
28.4
|
16.0
|
13.5
|
8.25
|
|
16.5V
|
201.0
|
136.4
|
83.5
|
49.8
|
28.3
|
15.9
|
13.4
|
7.95
|
|
1.70V
|
197.9
|
136.4
|
82.7
|
49.4
|
28.2
|
15.8
|
13.3
|
7.73
|
|
1.75V
|
190.6
|
133.4
|
81.9
|
49.0
|
27.9
|
15.6
|
13.2
|
7.50
|
|
1.80V
|
177.7
|
128.8
|
80.0
|
48.2
|
27.2
|
15.4
|
13.0
|
7.05
|
|
1.85V
|
161.3
|
121.8
|
76.0
|
46.0
|
25.9
|
14.7
|
12.6
|
6.75
|
Constant Power Discharge Characteristics : WPC(25℃)
|
F.V/Time
|
15MIN
|
30MIN
|
1HR
|
2HR
|
4HR
|
8HR
|
10HR
|
20HR
|
|
1.60V
|
376
|
261
|
161
|
98.6
|
56.5
|
31.9
|
27.0
|
14.6
|
|
16.5V
|
370
|
258
|
161
|
98.0
|
56.4
|
31.7
|
26.8
|
14.3
|
|
1.70V
|
366
|
259
|
160
|
97.4
|
56.3
|
31.5
|
26.6
|
14.1
|
|
1.75V
|
353
|
255
|
158
|
96.7
|
55.7
|
31.3
|
26.3
|
13.8
|
|
1.80V
|
330
|
247
|
155
|
95.5
|
54.5
|
30.7
|
26.1
|
13.5
|
|
1.85V
|
301
|
234
|
149
|
92.0
|
51.8
|
29.4
|
25.3
|
12.7
|
